Now Available: CoAP Formatter for UDP Gateway Destinations

Proxylity UDP Gateway now ships a native formatter for the Constrained Application Protocol (CoAP). Set Formatter: coap on any destination and UDP Gateway will automatically decode the binary wire format of each inbound CoAP packet into a structured JSON object before delivery — no Lambda glue code, no custom deserialisation, no binary wrangling in your state machine. Building a serverless CoAP API on AWS is now a configuration exercise.

What is CoAP?

CoAP is the UDP-based cousin of HTTP. It was designed from the ground up for constrained environments — microcontrollers with kilobytes of RAM, sensor nodes running on coin-cell batteries, mesh networks where every byte costs energy. The IETF published CoAP as RFC 7252 in 2014, and it has since become the application-layer protocol of choice for a wide range of IoT deployments.

The design philosophy will feel immediately familiar to any web developer:

• Methods: GET, POST, PUT, DELETE — the same four verbs as HTTP.
• Response codes: A compact numeric scheme (2.05 Content, 4.04 Not Found, 5.00 Internal Server Error) that mirrors HTTP status codes but fits in a single byte.
• URIs: coap://device.example.com:5683/sensors/temperature — scheme, host, port, and path, exactly as you would expect.
• Options: CoAP options map cleanly onto HTTP headers: Content-Format is Content-Type, Max-Age is Cache-Control, ETag is ETag.

Where CoAP departs from HTTP is in the transport and message reliability model. Because UDP provides no delivery guarantees, CoAP builds its own lightweight reliability layer directly into the message header. A Confirmable (CON) message must be acknowledged by the recipient with an ACK; if no ACK arrives within a retransmission timeout the sender tries again, up to a configurable maximum. A Non-confirmable (NON) message is fire-and-forget — appropriate for high-frequency sensor readings where losing the occasional sample is acceptable. This duality maps naturally onto UDP: CON messages give you reliability at the cost of a round-trip; NON messages give you throughput at the cost of guaranteed delivery.

The result is a protocol that speaks in familiar HTTP concepts but travels at UDP speed, across networks that would bring HTTP to its knees.

CoAP and UDP-Based APIs

For years, building a CoAP service meant running a C or Python server on a VM, managing certificates and retransmission logic by hand, and hoping the instance stayed up. The protocol was designed for constrained clients — but the servers ended up anything but constrained.

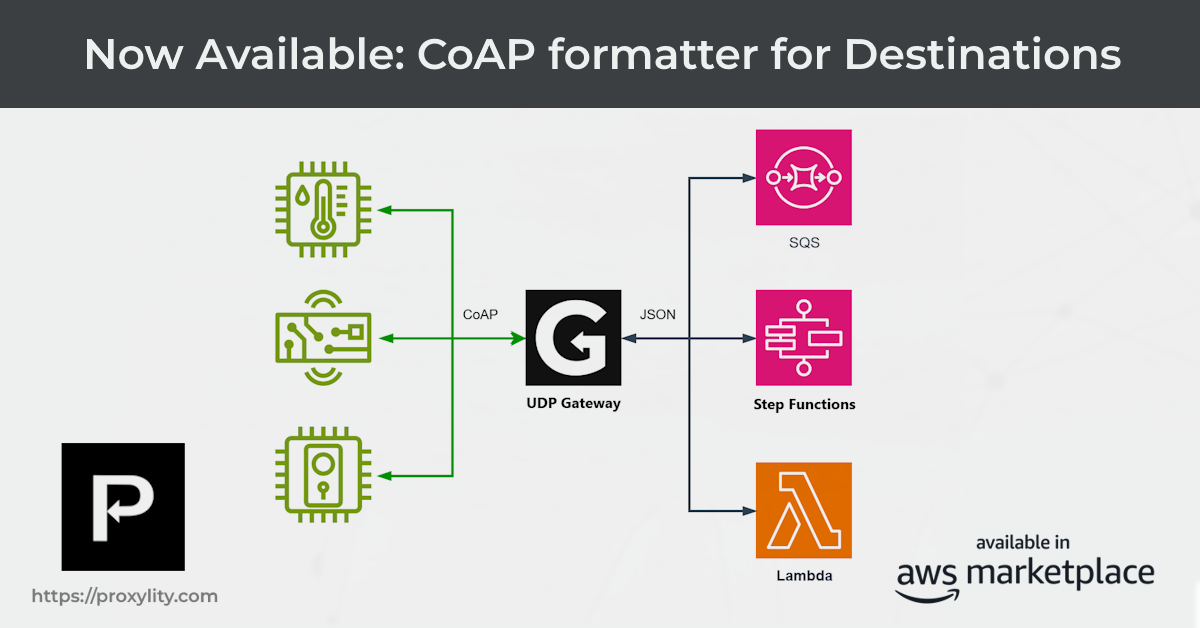

Proxylity UDP Gateway inverts the model. The gateway handles all the UDP plumbing: it terminates CoAP traffic at the edge, batches packets for efficient processing, and delivers them to your AWS resources. Your backend only sees clean JSON. It never touches a socket, never parses a byte, and scales to zero when there is nothing to do.

The new coap formatter is the missing piece that makes this practical. Previously, a Step Functions state machine receiving CoAP traffic would receive the raw binary payload in base64 encoding and would need custom Lambda states or complex JSONata expressions just to extract the method and path. With Formatter: coap, those fields arrive pre-parsed and ready to route on.

How the Formatter Works

When Formatter: coap is set on a destination, UDP Gateway decodes each inbound binary CoAP packet according to RFC 7252 and delivers the result as a JSON object in the Data field of the request packet. Here is an example of what a decoded CoAP GET /time request looks like when it arrives at a Lambda function or Step Functions state machine:

{
  "Messages": [
    {
      "Tag": "abc123",
      "Remote": { "IpAddress": "203.0.113.5", "Port": 12345 },
      "Formatter": "coap",
      "Data": "{\"Version\":1,\"Type\":0,\"Code\":1,\"Method\":\"GET\",\"MessageId\":4711,\"Token\":\"AQID\",\"Options\":[{\"Number\":11,\"Value\":\"dGltZQ==\"}],\"Path\":\"/time\"}"
    }
  ]
}

The Data string, once parsed, contains:

Field	Type	Description
Version	integer	CoAP version, typically 1
Type	integer	Message type: 0=CON, 1=NON, 2=ACK, 3=RST (RFC 7252 §4)
Code	integer	Method or response code as raw byte. Requests: 1=GET, 2=POST, 3=PUT, 4=DELETE. Responses: e.g. 69=2.05 Content, 132=4.04 Not Found
Method	string	Convenience field present on request messages (Code class 0): "GET", "POST", "PUT", "DELETE"
MessageId	integer	Used to match ACKs to CON messages
Token	base64	Client-chosen correlation token (0–8 bytes)
Options	array	Array of {"Number": <int>, "Value": <base64>} objects. Common option numbers: 11=Uri-Path, 12=Content-Format, 14=Max-Age, 60=Size1
Path	string	Convenience field with the URI path assembled by joining all Uri-Path option segments (option 11), e.g. "/sensors/temperature"
Payload	base64	Application payload bytes (omitted when absent)

For synchronous response destinations (Lambda and Step Functions), the reply Data must be a stringified JSON object using the same schema. The Code field accepts either an integer (e.g. 69) or a dotted-string (e.g. "2.05"). UDP Gateway re-encodes the reply into valid binary CoAP and sends it back to the client. Here is the reply for a successful GET /time request:

{
  "Version": 1,
  "Type": 2,
  "Code": 69,
  "MessageId": 4711,
  "Token": "AQID",
  "Options": [
    { "Number": 12, "Value": "AA==" }
  ],
  "Payload": "<base64-encoded UTC timestamp>"
}

The formatter handles the CoAP Confirmable/Non-confirmable contract automatically on ingress — but your backend is responsible for honouring it on egress. RFC 7252 requires that a CON message receive an ACK or the sender will keep retransmitting. A NON message requires no reply. The CoAP time service example demonstrates this routing pattern using a Step Functions state machine.

Configuration

Setting up a CoAP endpoint is a single line of CloudFormation. Add Formatter: coap to your destination alongside the usual batching and role configuration:

{
  "UdpListener": {
    "Type": "Custom::ProxylityUdpGatewayListener",
    "Properties": {
      "Protocols": ["udp"],
      "Destinations": [
        {
          "Description": "Decode CoAP requests and deliver to state machine",
          "Role": { "Arn": { "Fn::GetAtt": ["DestinationRole", "Arn"] } },
          "Formatter": "coap",
          "Batching": { "Count": 100, "TimeoutInSeconds": 0.5 },
          "DestinationArn": { "Fn::GetAtt": ["MyStateMachine", "Arn"] }
        }
      ]
    }
  }
}

No other changes are required. The same IAM role, the same batching configuration, the same destination ARN patterns you already use — just swap the formatter.

Note: The coap option is available only on the main destination Formatter property. Service-specific argument formatters such as TenantIdFormatter and MessageGroupIdFormatter are limited to ascii, hex, base64, and utf8.

The CoAP Time Service Example

We built a reference implementation to show the complete picture end to end. The CoAP Time Service is a minimal serverless CoAP API that responds to GET /time requests with the current UTC timestamp. It is implemented entirely with a Step Functions Express state machine — no Lambda cold starts, no persistent servers, no custom network code.

The state machine illustrates the three behaviours any well-behaved CoAP server must implement:

• Known path + CON: Reply with 2.05 Content ACK and the resource representation.
• Unknown path + CON: Reply with 4.04 Not Found ACK. RFC 7252 requires this; without it the client retransmits indefinitely.
• Unknown path + NON: Produce no reply. Non-confirmable fire-and-forget messages must be silently dropped when no response is warranted.

Because the formatter has already decoded the binary wire format, the Choice state can inspect .Type for the message type as an integer (0=CON, 1=NON), .Method for the request verb ("GET", "POST"…), and .Path for the URI path — no raw packet parsing, no base64 gymnastics. The full deploy-to-test cycle is: sam build && sam deploy --guided, then fire a test request from coap-client or a raw nc pipe. The readme has the full walkthrough.

What This Unlocks

CoAP is the lingua franca of constrained IoT devices. With the coap formatter, the full catalogue of UDP Gateway destinations is now available to any CoAP workload:

• Lambda or Step Functions — for request/response services with full protocol fidelity, like the time service above.
• SQS or Kinesis — ingest CoAP telemetry from sensors at scale and fan it out to downstream consumers without a standing server.
• DynamoDB — persist CoAP readings directly to a table, with path-derived sort keys when combined with a binary range expression.
• EventBridge — route CoAP events to downstream handlers based on path or method without any custom routing code.

And because WireGuard Listeners support the same destination formatter options, you can run CoAP over WireGuard tunnels and receive the same decoded JSON on the other side — encrypted CoAP at the edge, clean JSON in your backend.

Availability

The coap destination formatter is available today in Proxylity UDP Gateway across all supported AWS Regions. No subscription changes are required — update your CloudFormation template, redeploy your listener, and your CoAP traffic arrives pre-parsed.

For reference documentation see the Destination Formatter property and the JSON packet format documentation. The end-to-end deployment walkthrough is in the CoAP Time Service example.
